Classic Car LEDs Ltd

VW TRANSPORTER T5.1 T6 H4 LED UPGRADE AND WARNING CANCELLER BUNDLE

VW TRANSPORTER T5.1 T6 H4 LED UPGRADE AND WARNING CANCELLER BUNDLE

Regular price £90.99 GBP
Regular price Sale price £90.99 GBP
Sale Sold out
Kit Required

Bundled kit especially for the VW Transporter T5.1 and T6 - A pair of our very popular and high quality Top Range H4 LEDs together with the required warning cancellers to cancel the dash bulb out warning and flicker that the T5.1 and T6 can suffer from when upgrading to LED headlights. We have two options for the warning cancellers, details of which can be read at the bottom of this product description.

We've been providing this kit as separate items for a few years to T5.1 and T6 owners and all have commented how much of an improvement the lighting is.

This is a pair of top quality, H4 LED headlights made with the latest high power SMDs which produce a clean focused light with no glare and a very well defined beam that replicates the low and main beam pattern of a standard H4 halogen bulb when fitted to the appropriate headlight reflector.

Our new smaller build with a smaller control unit and easier mounting, these are a great upgrade from Halogen Lamps.

IP 65 Waterproof and vibration proof with IC Control, they are manufactured from aviation grade aluminium so are built to last.

The placement of the SMD's has been specifically designed to mimic the dimensions of a standard H4 Halogen bulb. As a result, you can be confident that they will produce an improved brighter light that will not dazzle other road users. In addition the reach of the beam (how far you can see ahead) is excellent and will provide an all round much improved performance over halogen bulbs.

These can be universally fitted with ease and are a simple plug and play solution with no changes to your existing wiring, they plug into your existing H4 socket.

They switch on immediately to give you instant light at maximum brightness. Cooling is provided by the built in high performance fan. They WILL improve your night time driving experience.

We use these headlight bulbs on our own cars so know the benefits these bulbs have and how easy they are to fit.

Colour: Pure White 6000-6500K (standard halogen is 3500-4500k) or Halogen White 4300k.
Voltage: 9-32V will suit 12 volt and 24 volt vehicles.
Lumen: 4500 main beam and 4500 dipped beam per bulb (standard halogen is around 1200 and 700 Lumen respectively).
Lifespan: 50,000 hours.
Current Drawn: 3.50 Amps (standard halogen uses 5 Amps) - the power drawn is dramatically reduced.

The control unit measures 43 x 27 x 15mm.

Our LEDs are all high quality and made to our own demanding specifications.
We believe in fair pricing and are confident you will not get a better price unless you want to compromise on the quality or life of your lamps.
60 Month Warranty against Manufacturing Fault

The MOT rules have been clarified from 06.02.23 to allow the use of LED conversions that pass the beam pattern tests for headlights for Class 3, 4, 5 and 7 vehicles (car, private bus and light commercial vehicle) first used before 1 April 1986 and all class 1 and 2 motorcycles of any age.

Warning cancellers are required for the majority of T5.1 and T6's after fitting LED headlights to solve flicker or bulb out warnings.

Option 1:
The much easier and safer fit are our Intelligent electronic warning canceller CANbus decoders. For full details on these please see part number H4DECODER. They are included in this bundle.

Option 2:

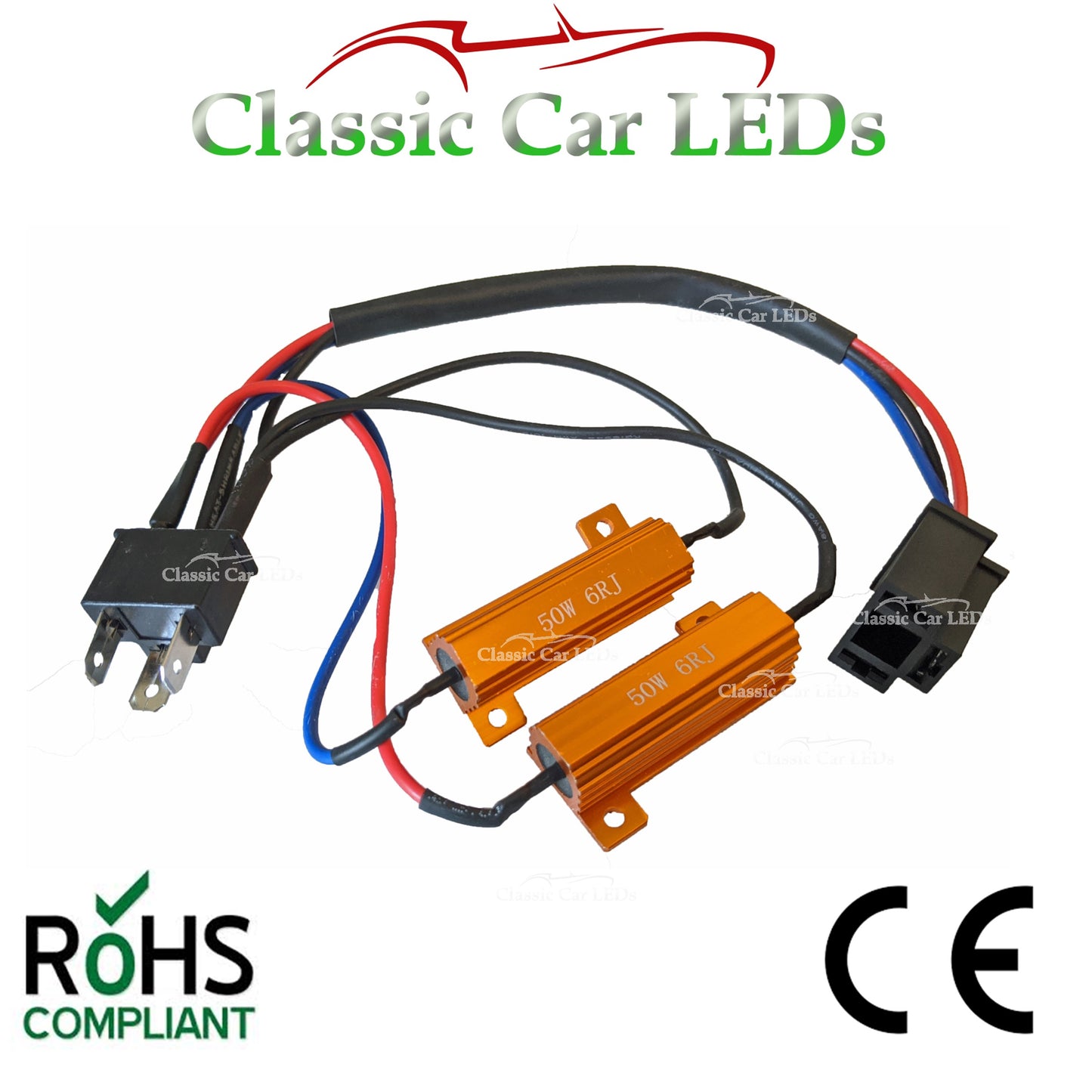

Traditional Ballast - These are high quality 50 Watt 6 Ohm Ballast resistors built into a plug and play harness suitable for H4 LEDs to aid easy fitting. These units convert excess voltage to heat which then dissipates through the metal casing. Please note that these can therefore get very hot and should be mounted where they will not cause any risk due to the heat emissions. We recommend the resistors are mounted underneath the slam panel above the headlight reflectors.

All prices shown exclude UK and EU VAT which will be added at checkout together with postage where appropriate.

Part Number: 2XH4&BALLAST4KKIT1, 2XH4&BALLAST6KKIT1, 2XH4&BALLAST4KKIT2, 2XH4&BALLAST6KKIT2

View full details

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
W
Wayne Adams
VW Transporter LED headlights

I never do reviews but I have to say that Duncan from Classic Car LED’s did an excellent job advising me as to which part I’d need to swap out standard headlights to LED’s on my VW Transporter. Not only that, he looked at photo’s I’d sent to make sure he sold us the correct part and spoke with me to allay all my concerns regarding the purchase and installation. Now, I can actually see the road ahead in the night! Fantastic job Duncan, many thanks.

p
pete herbert
magnificent!!!!

My VW T6 startline was running stock halogens.. awful lights to drive with at night -- literally shadows of my van in front of me whan anyone behind with led headlights!..

took the plunge & ordered this system from classic car leds -

I COULD NOT be more impressed with the magnificent transformation!! i literally wait until its dark before driving now!! the power & spread of the new setup is just sooooo much better than the standard lights --- im soo pleased

not to mention the great help & communication with the crew at classic car leds

...if you have a vw t6 BUY THESE

THANKYOU!!

Thanks Pete, delighted to see the new Electronic Cancellers are working well especially as they are safer to use.

R
Rodger
T5.1 LEDS

Recently fitted these bulbs to my T5, they're nice and bright with good beam cut off, not shining all over place like cheaper bulbs, ordered and delivered next day, also got the sidelight leds, quality bulbs with no flicker whatsoever

I
Ian Street
T6 LED headlight upgrade

Took the plunge and purchased these bulbs for my T6 Transporter with standard headlights.
Everything you need is supplied and they definitely do the job!!
Huge improvement on the Halogen bulbs.
I did get my local garage to fit them as there is no wiggle room under the bonnet and they are not as straight forward as simply swapping bulbs over.
I would highly recommend the upgrade but get them fitted if you want to keep the skin on your knuckles!!
