FERRARI 12V ELECTRONIC FLASHER / HAZARD RELAY Part #61048000
FERRARI 12V ELECTRONIC FLASHER / HAZARD RELAY Part #61048000
Couldn't load pickup availability
Looking to improve your flasher relay performance or are you considering or have you added LED indicator bulbs?
These electronic relays will keep your flash rate constant and keep it standard even if the load on the circuit changes. Standard relays will not flash at the correct rate with LED bulbs.
Suitable for Ferrari 208 Turbo (1982), 208 Turbo (1989), 288 GTO, 308 GTB (1980), 308 GTSi (1981), 308 Quattrovalvole (1985), 328 (1985), 328 (1988), 400 GT (Mechanical), 412 (Mechanical), 512 TR, F40, Mondial 3.0 QV (1984), Mondial 3.2 QV (1987), Mondial 3.4 t Coupe, Mondial 8 (1981), Testarossa (1985), Testarossa (1990) NEGATIVE EARTH with standard filament / incandescent bulbs or LEDs or a mix of filament / incandescent bulbs and LED.
Not many electronic flashers have the OE clicking sound - these do.
|
Technical Characteristics | ||
Nominal Voltage |
Un |
12V |
Operating Voltage |
Uop |
11V...15V |
Pull-in Voltage |
Ui |
‰¤11V@Tp |
Test Voltage |
Up |
13V±0.2V |
Test Temperature |
Tp |
+20°C±2°C |
Switch Current |
An |
0.02A - 20A |
Max. Current |
Am |
20A |
Flashing Frequency |
f |
90 TIMES/min±10% |
Operating Temperature |
Top |
-40°C...+80°C |
Storage Temperature |
Tsto |
+100°C/2h |
Life Time |
200h/Wn |
|
Operating Noise |
OE Ticking |
|

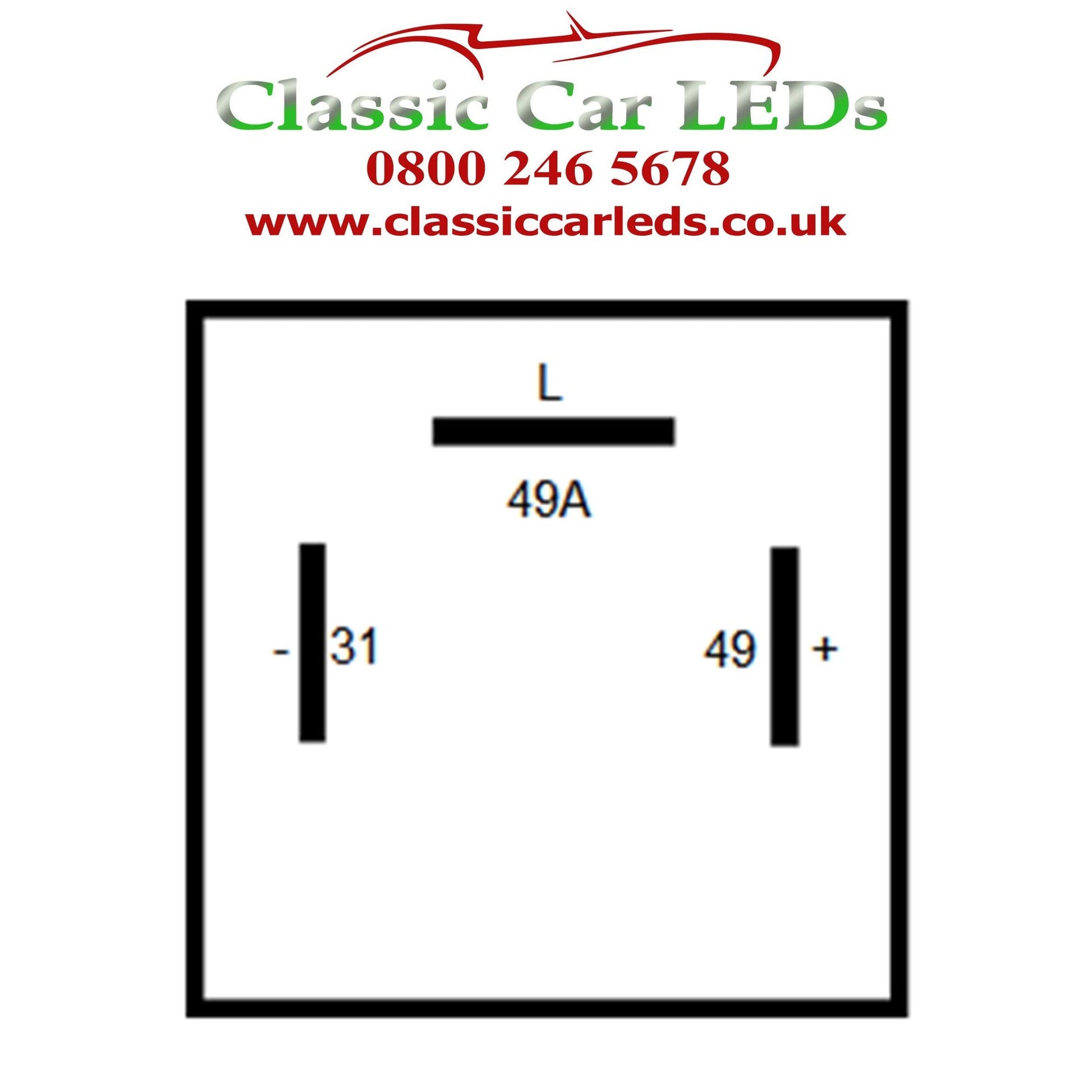

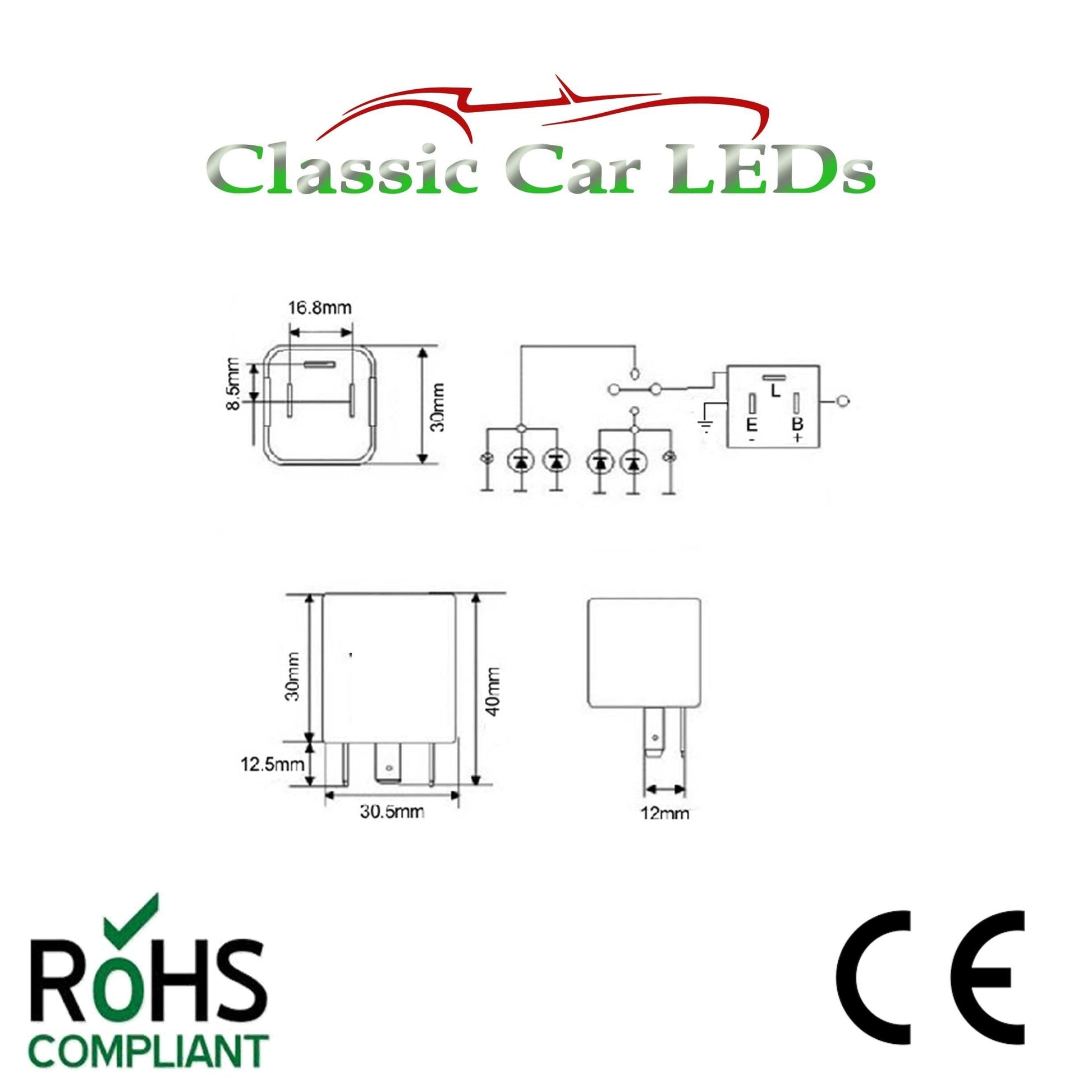

You will need to ensure that this unit is earthed by simply adding an earth wire, if not already fitted, to the earth tab - please refer to wiring diagram in picture 2 for fitting instructions
Replaces Ferrari Part #61048000
All prices shown exclude UK VAT which will be added at checkout together with postage where appropriate.
Part Number: CF14_1
